Xingjian Leng^1*   Jaskirat Singh^1*   Yunzhong Hou¹  
Zhenchang Xing²   Saining Xie³   Liang Zheng¹

¹ANU   ²Data61-CSIRO   ³New York University

^*Equal Contribution

Key Findings

1

End-to-end training dramatically accelerates convergence. REPA-E achieves 17× speedup over REPA and 45× over vanilla training while achieving superior generation quality.

2

Joint training adaptively improves VAE latent structure. The VAE learns to produce latents better suited for the diffusion model's denoising task.

3

E2E-VAE serves as superior drop-in replacement. Achieving SOTA FID of 1.12 (w/ CFG) and 1.69 (w/o CFG) on ImageNet 256×256.

News

event [Oct 2025] Released REPA-E for T2I — a family of End-to-End Tuned VAEs:

• Family of end-to-end tuned VAEs:
  • T2I VAEs: FLUX-VAE, SD-3.5-VAE, Qwen-Image-VAE
  • ImageNet VAEs: SD-VAE, IN-VAE, VA-VAE
• SOTA results on ImageNet 256×256: FID 1.12 with CFG and 1.69 without CFG
• All models available as Hugging Face-compatible AutoencoderKL checkpoints

event [Jun 2025] REPA-E accepted at ICCV 2025!

event [Apr 2025] Paper, code, and pretrained models available on GitHub and Hugging Face.

---

Quickstart

E2E-FLUX-VAE E2E-SD3.5-VAE E2E-Qwen-Image-VAE E2E-SD-VAE E2E-VA-VAE E2E-INVAE

Installation: pip install diffusers>=0.33.0 torch>=2.3.1

Quick Start

Loading the VAE is as easy as:

from diffusers import AutoencoderKL

vae = AutoencoderKL.from_pretrained("REPA-E/e2e-flux-vae").to("cuda")

Complete Example

Full workflow for encoding and decoding images:

from io import BytesIO
import requests
from diffusers import AutoencoderKL
import numpy as np
import torch
from PIL import Image

response = requests.get("https://raw.githubusercontent.com/End2End-Diffusion/fuse-dit/main/assets/example.png")
device = "cuda"

image = torch.from_numpy(
    np.array(
        Image.open(BytesIO(response.content))
    )
).permute(2, 0, 1).unsqueeze(0).to(torch.float32) / 127.5 - 1
image = image.to(device)

vae = AutoencoderKL.from_pretrained("REPA-E/e2e-flux-vae").to(device)

with torch.no_grad():
    latents = vae.encode(image).latent_dist.sample()
    reconstructed = vae.decode(latents).sample

Installation: pip install diffusers>=0.33.0 torch>=2.3.1

Quick Start

Loading the VAE is as easy as:

from diffusers import AutoencoderKL

vae = AutoencoderKL.from_pretrained("REPA-E/e2e-sd3.5-vae").to("cuda")

Complete Example

Full workflow for encoding and decoding images:

from io import BytesIO
import requests
from diffusers import AutoencoderKL
import numpy as np
import torch
from PIL import Image

response = requests.get("https://raw.githubusercontent.com/End2End-Diffusion/fuse-dit/main/assets/example.png")
device = "cuda"

image = torch.from_numpy(
    np.array(
        Image.open(BytesIO(response.content))
    )
).permute(2, 0, 1).unsqueeze(0).to(torch.float32) / 127.5 - 1
image = image.to(device)

vae = AutoencoderKL.from_pretrained("REPA-E/e2e-sd3.5-vae").to(device)

with torch.no_grad():
    latents = vae.encode(image).latent_dist.sample()
    reconstructed = vae.decode(latents).sample

Installation: pip install diffusers>=0.35.0 torch>=2.5.0

Quick Start

Loading the VAE is as easy as:

from diffusers import AutoencoderKLQwenImage

vae = AutoencoderKLQwenImage.from_pretrained("REPA-E/e2e-qwenimage-vae").to("cuda")

Complete Example

Full workflow for encoding and decoding images (note the frame dimension handling):

from io import BytesIO
import requests
from diffusers import AutoencoderKLQwenImage
import numpy as np
import torch
from PIL import Image

response = requests.get("https://raw.githubusercontent.com/End2End-Diffusion/fuse-dit/main/assets/example.png")
device = "cuda"

image = torch.from_numpy(
    np.array(
        Image.open(BytesIO(response.content))
    )
).permute(2, 0, 1).unsqueeze(0).to(torch.float32) / 127.5 - 1
image = image.to(device)

vae = AutoencoderKLQwenImage.from_pretrained("REPA-E/e2e-qwenimage-vae").to(device)

# Add frame dimension (required for QwenImage VAE)
image_ = image.unsqueeze(2)

with torch.no_grad():
    latents = vae.encode(image_).latent_dist.sample()
    reconstructed = vae.decode(latents).sample

# Remove frame dimension
latents = latents.squeeze(2)
reconstructed = reconstructed.squeeze(2)

Installation: pip install diffusers>=0.33.0 torch>=2.3.1

Quick Start

Loading the VAE is as easy as:

from diffusers import AutoencoderKL

vae = AutoencoderKL.from_pretrained("REPA-E/e2e-sdvae-hf").to("cuda")

Complete Example

Full workflow for encoding and decoding images (512×512 resolution):

from io import BytesIO
import requests
from diffusers import AutoencoderKL
import numpy as np
import torch
from PIL import Image

response = requests.get("https://raw.githubusercontent.com/End2End-Diffusion/fuse-dit/main/assets/example.png")
device = "cuda"

image = torch.from_numpy(
    np.array(
        Image.open(BytesIO(response.content)).resize((512, 512))
    )
).permute(2, 0, 1).unsqueeze(0).to(torch.float32) / 127.5 - 1
image = image.to(device)

vae = AutoencoderKL.from_pretrained("REPA-E/e2e-sdvae-hf").to(device)

with torch.no_grad():
    latents = vae.encode(image).latent_dist.sample()
    reconstructed = vae.decode(latents).sample

Installation: pip install diffusers>=0.33.0 torch>=2.3.1

Quick Start

Loading the VAE is as easy as:

from diffusers import AutoencoderKL

vae = AutoencoderKL.from_pretrained("REPA-E/e2e-vavae-hf").to("cuda")

Complete Example

Full workflow for encoding and decoding images (512×512 resolution):

from io import BytesIO
import requests
from diffusers import AutoencoderKL
import numpy as np
import torch
from PIL import Image

response = requests.get("https://raw.githubusercontent.com/End2End-Diffusion/fuse-dit/main/assets/example.png")
device = "cuda"

image = torch.from_numpy(
    np.array(
        Image.open(BytesIO(response.content)).resize((512, 512))
    )
).permute(2, 0, 1).unsqueeze(0).to(torch.float32) / 127.5 - 1
image = image.to(device)

vae = AutoencoderKL.from_pretrained("REPA-E/e2e-vavae-hf").to(device)

with torch.no_grad():
    latents = vae.encode(image).latent_dist.sample()
    reconstructed = vae.decode(latents).sample

Installation: pip install diffusers>=0.33.0 torch>=2.3.1

Quick Start

Loading the VAE is as easy as:

from diffusers import AutoencoderKL

vae = AutoencoderKL.from_pretrained("REPA-E/e2e-invae-hf").to("cuda")

Complete Example

Full workflow for encoding and decoding images (512×512 resolution):

from io import BytesIO
import requests
from diffusers import AutoencoderKL
import numpy as np
import torch
from PIL import Image

response = requests.get("https://raw.githubusercontent.com/End2End-Diffusion/fuse-dit/main/assets/example.png")
device = "cuda"

image = torch.from_numpy(
    np.array(
        Image.open(BytesIO(response.content)).resize((512, 512))
    )
).permute(2, 0, 1).unsqueeze(0).to(torch.float32) / 127.5 - 1
image = image.to(device)

vae = AutoencoderKL.from_pretrained("REPA-E/e2e-invae-hf").to(device)

with torch.no_grad():
    latents = vae.encode(image).latent_dist.sample()
    reconstructed = vae.decode(latents).sample

For complete usage examples and integration with diffusion models, see the individual model cards on Hugging Face.

---

Overview

We address a fundamental question: Can latent diffusion models and their VAE tokenizer be trained end-to-end? While training both components jointly with standard diffusion loss is observed to be ineffective — often degrading final performance — we show that this limitation can be overcome using a simple representation-alignment (REPA) loss. Our proposed method, REPA-E, enables stable and effective joint training of both the VAE and the diffusion model, achieving state-of-the-art FID scores of 1.12 and 1.69 with and without classifier-free guidance on ImageNet 256×256.

Previous attempts at end-to-end training often led to training instability or degraded reconstruction quality. REPA loss provides the crucial guidance signal.

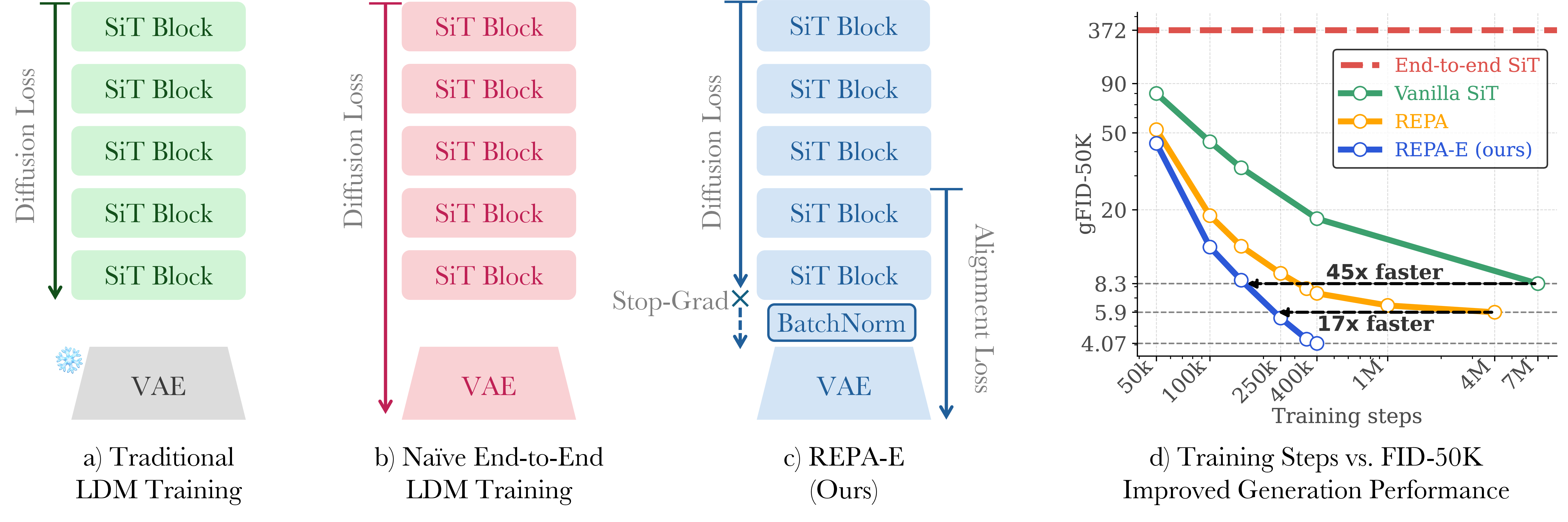

REPA-E Overview. End-to-end training of VAE and diffusion model using representation alignment loss.

Through extensive evaluations, we demonstrate that our end-to-end training approach REPA-E offers four key advantages:

1. E2E Leads to Faster Training: REPA-E significantly speeds up diffusion training by over 17× and 45× compared to REPA and vanilla training recipes, respectively.
2. E2E Leads to Improved Latent Space: Joint tuning adaptively enhances latent space structure across different VAE architectures.
3. E2E VAEs are Better than Regular VAEs: The resulting E2E-VAE serves as a drop-in replacement, improving convergence and generation quality across diverse LDM architectures. REPA-E also enables joint training of both VAE and LDM from scratch.

• Core Insight: End-to-end training of VAE and diffusion model becomes effective with REPA loss, overcoming previous instability issues and achieving SOTA generation quality.

---

1. E2E Leads to Faster Training

REPA-E dramatically accelerates diffusion model training while achieving superior generation quality. We demonstrate consistent improvements across different model scales and VAE architectures.

The key insight is that end-to-end VAE tuning allows the latent space to adapt to the diffusion model's needs, reducing the optimization burden.

• Better performance with fewer epochs: REPA-E achieves gFID of 4.07 in just 80 epochs, significantly outperforming MaskDiT (5.69 with 1600 epochs) and FasterDiT (7.91 with 400 epochs)
• Robust across architectures: Performance improvements remain consistent across different model scales (SiT-B/L/XL) and VAE architectures (SD-VAE, IN-VAE, VA-VAE)
• Enhanced image quality across training: Using identical noise and labels, REPA-E generates structurally superior images compared to REPA baseline at 50K, 100K, and 400K training iterations

Comparison of methods with and without end-to-end tuning

Method	Tokenizer	Epochs	gFID↓	sFID↓	IS↑
Without End-to-End Tuning
MaskDiT [54]	SD-VAE	1600	5.69	10.34	177.9
DiT [34]		1400	9.62	6.85	121.5
SiT [30]		1400	8.61	6.32	131.7
FasterDiT [49]		400	7.91	5.45	131.3
REPA [52]	SD-VAE	20	19.40	6.06	67.4
		40	11.10	6.06	67.4
		80	7.90	5.06	122.6
		800	5.90	5.73	157.8
With End-to-End Tuning (Ours)
REPA-E	SD-VAE*	20	12.83	5.04	88.8
		40	7.17	4.39	123.7
		80	4.07	4.60	161.8

Scalability across diffusion model sizes

Diff. Model	gFID↓	sFID↓	IS↑	Prec.↑	Rec.↑
SiT-B (130M)	49.5	7.00	27.5	0.46	0.59
+REPA-E (Ours)	34.8	6.31	39.1	0.57	0.59
SiT-L (458M)	24.1	6.25	55.7	0.62	0.60
+REPA-E (Ours)	16.3	5.69	75.0	0.68	0.60
SiT-XL (675M)	19.4	6.06	67.4	0.64	0.61
+REPA-E (Ours)	12.8	5.04	88.8	0.71	0.58

Generalization across different VAE architectures

Autoencoder	gFID↓	sFID↓	IS↑	Prec.↑	Rec.↑
SD-VAE [39]	24.1	6.25	55.7	0.62	0.60
+REPA-E (Ours)	16.3	5.69	75.0	0.68	0.60
IN-VAE (f16d32)	22.7	5.47	56.0	0.62	0.62
+REPA-E (Ours)	12.7	5.57	84.0	0.69	0.62
VA-VAE [48]	12.8	6.47	83.8	0.71	0.58
+REPA-E (Ours)	11.1	5.31	88.8	0.72	0.61

Qualitative comparison between REPA and REPA-E. Images generated at different training iterations using identical noise and labels.

• Finding 1: REPA-E achieves 17× speedup over REPA and 45× over vanilla training while delivering superior generation quality across all tested configurations.

---

2. E2E Leads to Improved Latent Space

End-to-end training with REPA-E adaptively refines the VAE's latent space structure without explicit regularization. Different VAE architectures exhibit different failure modes, and REPA-E addresses each appropriately.

Different VAEs have different failure modes—SD-VAE tends toward high-frequency artifacts while IN-VAE/VA-VAE over-smooth. REPA-E addresses each appropriately.

• Adaptive refinement without explicit regularization: REPA-E automatically adapts to each VAE's unique latent space characteristics
• PCA visualization: Using principal component analysis, we project VAE latents to RGB channels, revealing how end-to-end tuning improves latent representation quality
• Architecture-specific benefits:
  • SD-VAE enhancement: Reduces high-frequency noise components for smoother latent representations
  • IN-VAE & VA-VAE enhancement: Adds essential structural details to over-smoothed latent representations

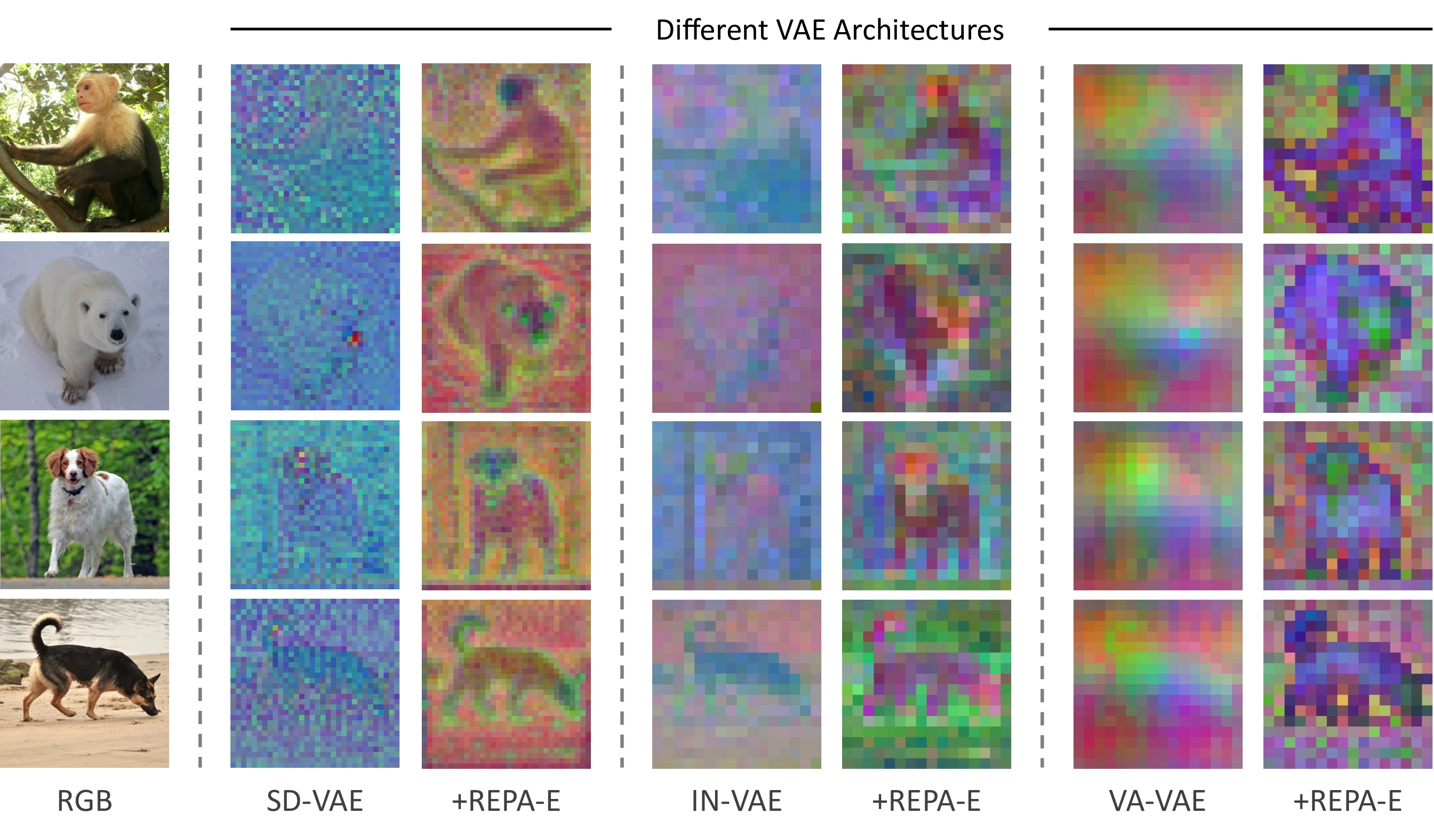

PCA visualization of VAE latent spaces. End-to-end tuning with REPA-E improves latent representation quality across different VAE architectures.

• Finding 2: End-to-end training adaptively improves latent space structure—reducing noise in SD-VAE while adding structural detail to IN-VAE/VA-VAE—without explicit regularization.

---

3. E2E VAEs are Better than Regular VAEs

The end-to-end tuned E2E-VAE serves as a universal drop-in replacement for standard VAEs, delivering consistent improvements across diverse diffusion model architectures without requiring any modifications to the training pipeline.

E2E-VAE can be directly loaded using the standard diffusers API—no custom wrappers or code changes required.

• Universal improvement: E2E-VAE serves as a drop-in replacement for original VAEs, delivering superior performance across diverse diffusion architectures
• State-of-the-art generation quality: Achieves gFID of 1.12 (w/ CFG) and 1.69 (w/o CFG) when training with REPA for 800 epochs
• Comprehensive performance superiority: Achieves gFID of 3.46 with SiT-XL and REPA (vs. 4.88 with VA-VAE and 7.90 with SD-VAE)
• Architecture-robust performance: E2E-VAE maintains strong generation quality across diffusion models with and without REPA

E2E-VAE as drop-in replacement. Comparison showing E2E-VAE delivers consistent improvements across different diffusion architectures.

From-Scratch Training

REPA-E enables effective joint training of both VAE and LDM from scratch, eliminating the need for separate VAE pre-training while still achieving superior performance compared to traditional approaches.

• End-to-end training from scratch: REPA-E can jointly train both VAE and LDM from scratch in an end-to-end manner, without requiring VAE pre-training
• Strong performance even without initialization: While initializing the VAE with pretrained weights helps slightly improve results, from-scratch training still achieves gFID of 4.34 at 80 epochs, significantly outperforming REPA (7.90)

From-scratch training results. REPA-E enables effective joint training without VAE pre-training.

Method	gFID↓	sFID↓	IS↑	Prec.↑	Rec.↑
100K Iterations (20 Epochs)
REPA [52]	19.40	6.06	67.4	0.64	0.61
REPA-E (scratch)	14.12	7.87	83.5	0.70	0.59
REPA-E (VAE init.)	12.83	5.04	88.8	0.71	0.58
200K Iterations (40 Epochs)
REPA [52]	11.10	5.05	100.4	0.69	0.64
REPA-E (scratch)	7.54	6.17	120.4	0.74	0.61
REPA-E (VAE init.)	7.17	4.39	123.7	0.74	0.62
400K Iterations (80 Epochs)
REPA [52]	7.90	5.06	122.6	0.70	0.65
REPA-E (scratch)	4.34	4.44	154.3	0.75	0.63
REPA-E (VAE init.)	4.07	4.60	161.8	0.76	0.62

• Finding 3: E2E-VAE serves as a universal drop-in replacement, achieving SOTA FID of 1.12 (w/ CFG) and 1.69 (w/o CFG) across diverse diffusion architectures.

---

Conclusion

We introduced REPA-E, a method for end-to-end training of latent diffusion models and their VAE tokenizers. Our key findings demonstrate that:

1. End-to-end training with REPA loss achieves 17× speedup over REPA and 45× speedup over vanilla training
2. Joint training adaptively improves VAE latent space structure across different architectures
3. E2E-VAE serves as a superior drop-in replacement, achieving SOTA FID of 1.12 on ImageNet 256×256

These results establish end-to-end training as a practical and effective approach for training latent diffusion models, opening new possibilities for joint architecture optimization and task-specific adaptations.
